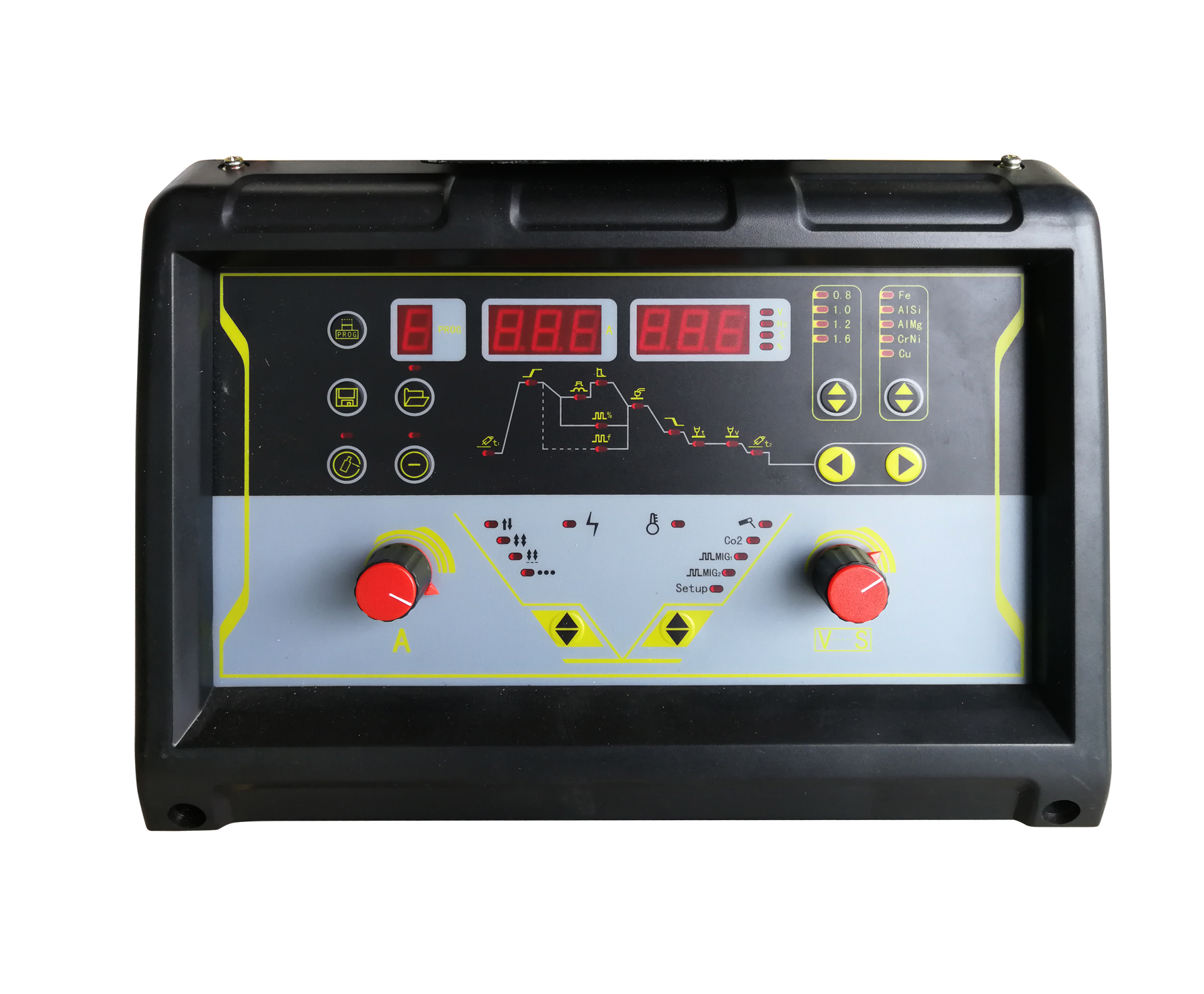

1、采用集成电路、IGBT逆变电源技术,调节方便、性能优良。
2、具有电流电压分别调节/简易一元化转换调节功能。
3、具有消溶球(FTT)功能、收弧时自动去除焊丝末梢小球,便于再次成功起弧。
4、具有多种焊接方式选择:CO2、MIG/MAG、可配合各种全自动焊接机械使用。
5、适用于焊接中、低碳钢、不锈钢、铝等金属。
6、广泛应用于车辆制造、汽车维修、金属家具、厨具、金属结构、化工机械、锅炉压力容器、管道等行业。
1、Adapt integrated circuit and IGBT inverter power source technology, convenient to adjust and good performance.
2、Welding current , voltage separated adjustment/simplified one knob adjustment.
3、FTT is offered, which is available for deleting the little melting ball at the end of welding wire and for next are striking.
4、Have many kinds of welding ways to choose: CO2、MIG/MAG、by cooperating various kinds of full-automatic welding machinery.
5、Suidtable for welding such metals as low carbon steel and aluminium.
6、Widely apply to such trades as vehicle making, metal structure, chemical machinery, boiler, pressure container and pipeline.
项目名称 |
单位 |
型号 |
|||
LG-65MA |
LG-125HA |
LG-200HA |
|||
输入电源 |
V/Hz |
3~380±15% 50/60 |
|||
额定输入容量 |
KVA |
10 |
24.1 |
55.3 |
|
额定输入电流 |
A |
15.3 |
36.7 |
83.2 |
|
额定输出电流电压 |
A/V |
65/106 |
125/130 |
200/200 |
|
额定空载电压 |
V |
300 |
320 |
360 |
|
额定负载持续率 |
- |
60%(40℃) |
100%(40℃) |
100%(40℃) |
|
效率 |
- |
87% |
90% |
92% |
|
功率因数 |
- |
0.79 |
0.74 |
0.8 |
|
输出电流调节范围 |
A |
30~65 |
30~125 |
40~200 |
|
弧压输出信号比例 |
- |
1:1 |
|||
引弧方式 |
- |
非接触引弧 |
|||
等离子气体 |
- |
空气 |
空气 |
空气/氮气/氧气 |
|
保护气体 |
- |
- |
- |
空气/氮气 |
|
供气压力 |
Mpa |
0.3~0.6 |
0.4~0.6 |
0.4~0.6 |
|
质量切割能力(碳钢) |
mm |
12(850mm/min) |
25(580mm/min) |
32(500mm/min) |
|
绝缘等级 |
- |
F 级 |
|||
电源冷却方式 |
- |
风冷 |
|||
外壳防护等级 |
- |
IP21S |
|||
外形尺寸(长×宽×高) |
mm |
585×280×485 |
670×320×600 |
850×410×880 |
|
起弧控制器净重 |
Kg |
2.5 |
4.5 |
9.3 |
|
电源净重 |
Kg |
24 |
49 |
106 |
